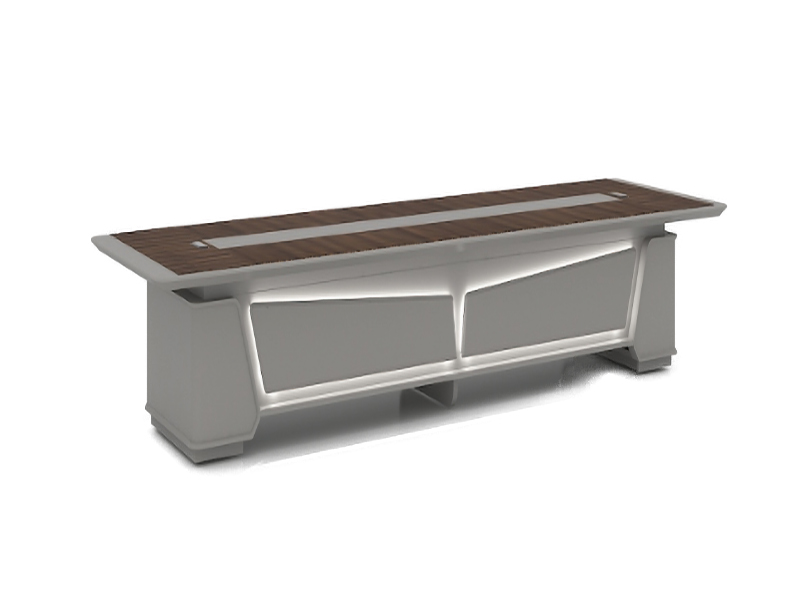

Multi-scenario Interactive Desktop
▸Adopts 18mm ship-grade fireproof fiberboard substrate with a 0.5mm anti-fingerprint matte coating, meeting ISO 9239-1 fireproof standards. The left side of the desktop embeds a 15.6-inch industrial touchscreen (IP65 protection), while the right side configures a liftable mechanical keyboard tray (stroke 0-12cm ±0.5mm error). The cable management system includes 3 groups of waterproof socket compartments compliant with IEC 60320, each with an independent magnetic dust cover.
Intelligent Environment Adaptation System
▸Dynamic balance module: Built-in three-axis MEMS acceleration sensor, combined with a micro servo motor, automatically adjusts the table angle during ship pitch ±8° (compensation accuracy 0.3°)
▸Environmental monitoring unit: Integrates temperature/humidity, VOC, and PM2.5 sensors, displaying data real-time on the touchscreen and activating the internal air purification module (air exchange 12m³/h) when 超标 (exceeding standards)
▸Anti-corrosion system: All metal parts pass 72-hour neutral salt spray test (ASTM B117), with critical hinges made of nickel-plated copper alloy (thickness ≥50μm)
Modular Storage Solution
▸Upper drawers are equipped with German Hettich damping slides (20kg load), internally divided into:
•Equipment compartment: With EVA shockproof lining, fixes 2 rugged tablets
•Tool compartment: Laser-cut TPU mold fits various marine instruments
▸The lower main cabinet uses a pneumatic opening structure, containing:
•Waterproof electronics cabinet (IPX6, with anti-condensation heating pad)
•Magnetic shielding archive compartment (mu-metal 夹层 with μ≥5000)
•Emergency power compartment (supports Type-C/USB PD 100W fast charging)
▸Structural stability: Maintains integrity under cross-wave impact ≤2000N
▸Surface treatment: Desktop reflectivity <20% (measured at 60° incident angle), R5mm anti-collision edge chamfer
▸Electromagnetic compatibility: Meets IEC 60945, with 3M AB5100S wave-absorbing material applied to key areas
▸Environmental tolerance: All functional modules operate normally at -20℃~55℃ (based on MIL-STD-810G testing)
1.Functional Expansion
▸Optional marine AIS system integration interface (supports NMEA 0183/2000 protocols)
▸Additional SOLAS-compliant emergency oxygen cylinder hidden compartment (2L volume, auto-relief valve)
▸Explosion-proof version upgrade
2.Ergonomic Adjustments
▸Electrically adjustable desktop height (68-125cm range, 15mm/s speed)
▸Left-handed operation mirror layout available
3.Visual Customization
▸Cabinet doors support UV printing of ship hull numbers or company logos
▸Light strip modes can preset anchor, navigation, and emergency scenarios
▸Modular disassembly packaging:
•Main body: EPP foam molded shockproof box (passed ISTA 3A drop test)
•Electronic components: Vacuum aluminum foil moisture-proof bag + anti-static shielding bag
•Accessories: Laser-engraved 304 stainless steel tool kit (including marine-grade hex key set)
Serves as the main control console for ship command centers during the day, with wood grain 台面 reducing operator visual fatigue; switches to low-light mode at night, creating a glare-free work environment via bottom lighting and touchscreen. Ideal for scenarios requiring both professional operation and humanized design, such as research vessels and offshore wind power maintenance platforms.
